+3 Base Pad Extension for G19 (15rd) and G17 (17rd) Magazines

*The Pylon MXG ships with an 11-coil spring for use with G17 (17rd) OEM magazines. We recommend using a 10-coil (G17 OEM) spring for use in G19 (15rd) magazines and a 9-coil spring (G19 OEM) for use in G26 (10rd) magazines.

Patent pending locking push-pin mounting system
No tools necessary for extension installation/removal/maintenance
Adds 3 (three) rounds to G19 (15rd) magazines with 10-coil spring

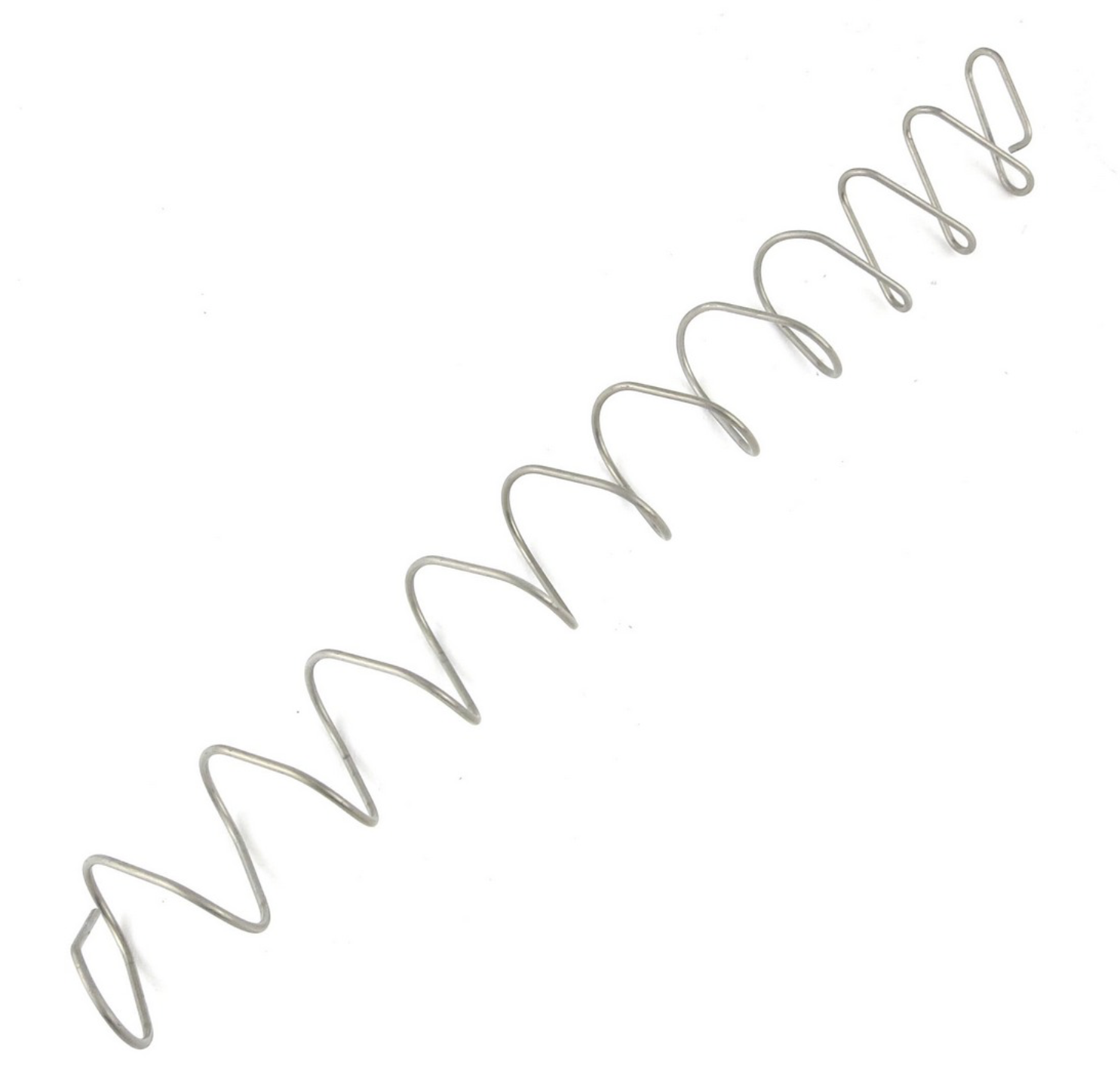

Adds 3 (three) rounds to G17 (17rd) magazines with included 11-coil spring
CNC aluminum housing, H-series metallic cerakote
4140 PH steel QP nitride finished retention pin
Proudly designed, engineered, and manufactured in the United States

Known magazine well compatibility: Agency Arms, Reptilia, Magpul, GlockStore GS Fast, all back strap-compatible wells. Because the MXG uses a hard locked push-pin system, magazine wells that utilize a “flat bottom” below the back strap may cause the MXG pin to snap into the unlocked position. We will provide as many compatible brands as we can test and will update this list accordingly.

Not available for shipment to CA or WA. Please see our compliance notices for more information.

Install notes:

G19: After removing your OEM base pad and plastic insert at the bottom of the spring, remove OEM follower and install it on a 10-coil (G17 OEM or comparable). Insert the spring into the magazine then, with the extension pin unlocked, compress it while sliding on the MXG. You will hear and feel your magazine spring decompress into the magazine extension. You may now push the pin into the locked position. Note that round 18 will require significant force but still allow enough give for proper seating. We recommend the use of a speed loader if and when possible.

G17: After removing your OEM base pad and plastic insert at the bottom of the spring, remove OEM follower and install it on the 11-coil spring included with your MXG purchase. Insert the spring into the magazine then, with the extension pin unlocked, compress it while sliding on the MXG. You will hear and feel your magazine spring decompress into the magazine extension. You may now push the pin into the locked position.

Magazine Extension

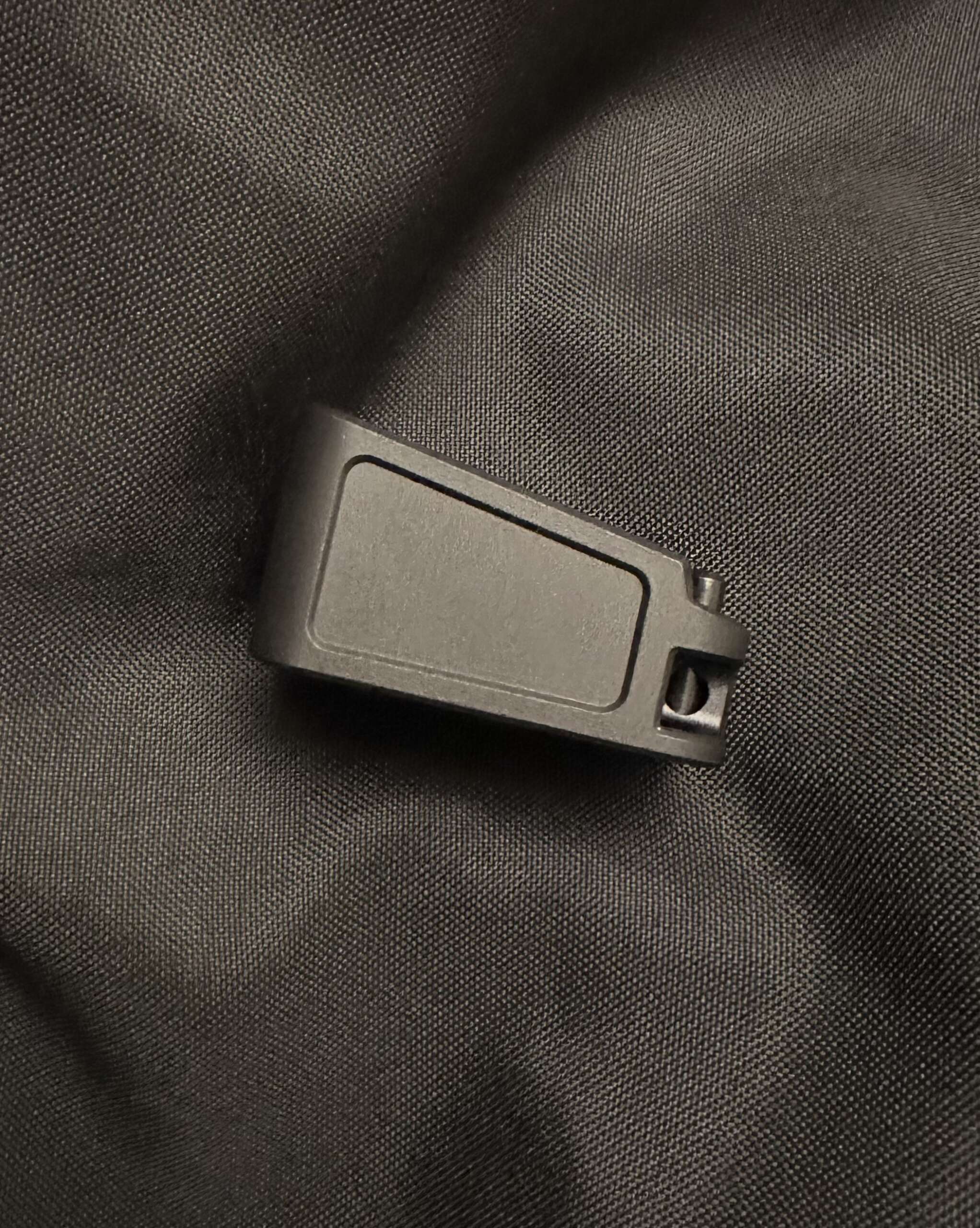

MXG 9mm: Black (Out of Stock)

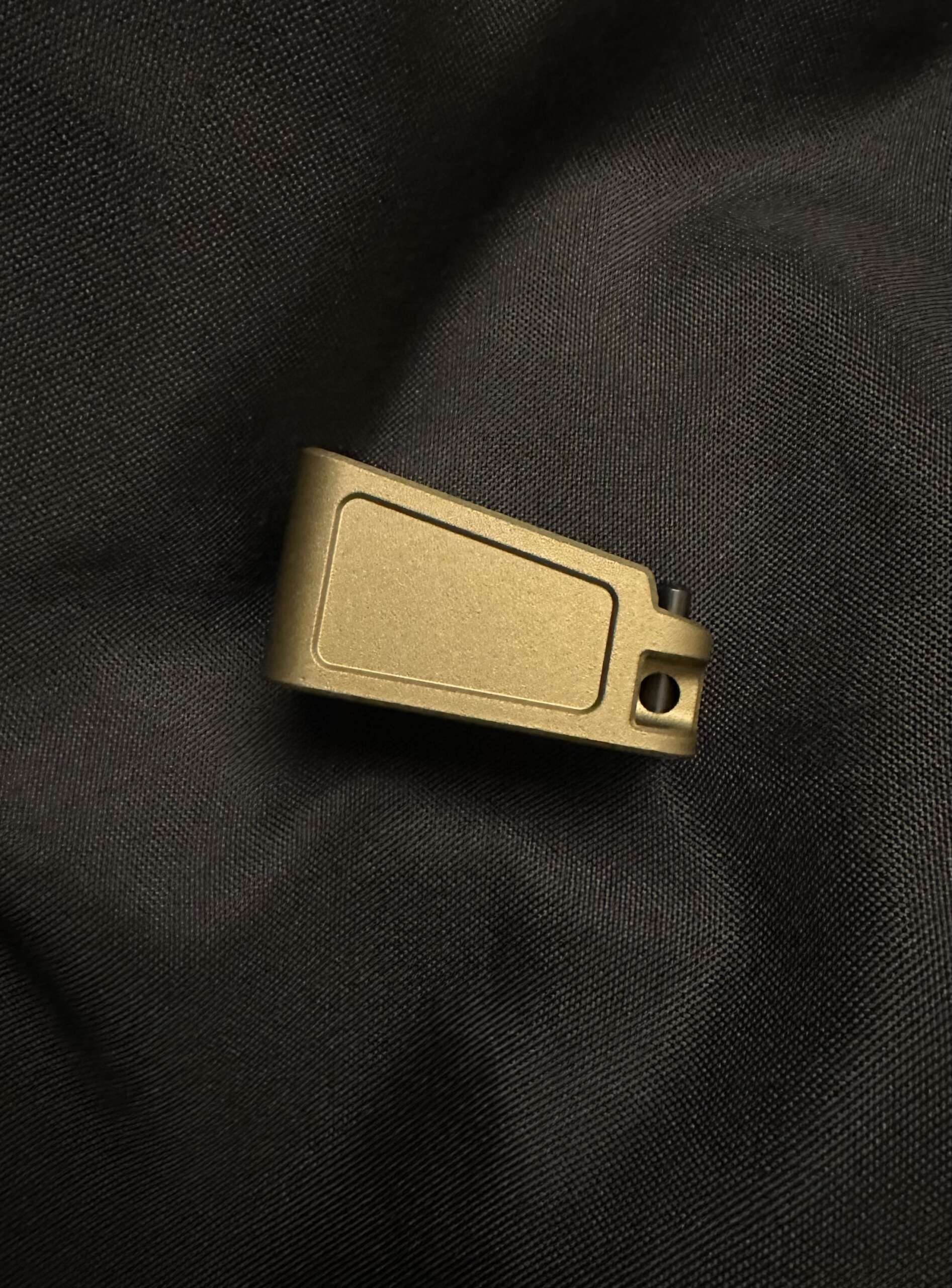

MXG 9mm: Coyote (Out of Stock)

MXG 9mm: Purple (Out of Stock)
